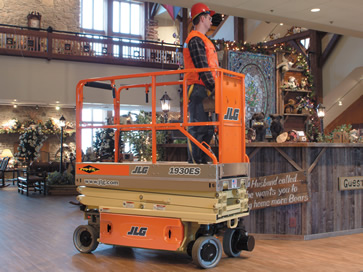

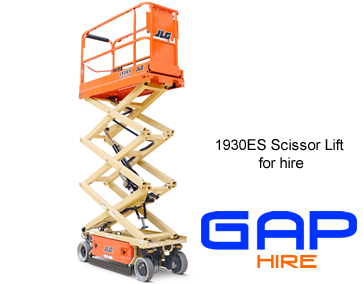

1930ES Scissor Lifts for Hire

• Platform Height: 5.72 m
• Machine Width: 0.76 m

Key Features

• Quieter, cleaner operation for a variety of environments
• Electric drive and integrated components with only two hydraulic hoses and four hydraulic fittings on the entire machine will keep you on the job longer and reduce your operating costs by reducing chances for leaks and service calls
• Narrow width fits through most standard doorways and tight aisles

Power Source

• Batteries 4 x 6V, 220 A-h
• Charger 20 A automatic

General Specifications

• Brakes Electric, Friction
• Capacity – Hydraulic Reservoir 4.73 L
• Ground Bearing Pressure 8.65 Kg/cm2
• Hydraulic Pump Fixed Displacement Gear
• Machine Weight (ANSI Export & CSA) 1230 kg
• Machine Weight 1506 kg

Performance Data

• Drive Speed – Platform Elevated 0.80 km/h
• Drive Speed – Platform Lowered 4.80 km/h
• Drive System 24V Electric
• Gradeability 25 %
• Lift Time 20 sec.
• Lower Time 30 sec.
• Maximum Drive Height 5.72 m
• Maximum Lift Height 5.72 m
• Platform Capacity – Extension 120 kg
• Platform Capacity – Unrestricted 230 kg
• Turning Radius – Outside 1.75 m
• Turning Radius – Inside 0 m

Dimensional Data

• Ground Clearance 0.09 m
• Machine Height 2.02 m
• Machine Height – Rails Folded 1.59 m
• Machine Length 1.87 m
• Machine Width 0.76 m
• Platform Dimension A 0.76 m
• Platform Dimension B 1.87 m
• Platform Extension Length 0.90 m
• Platform Height 5.72 m
• Platform Height – Lowered 0.89 m
• Platform Railing Height 1.10 m
• Tyre Size 32 x 10 cm
• Wheelbase 1.60 m

Reach Specifications

• Platform Height 5.72 m
• Working Height 7.72 m
