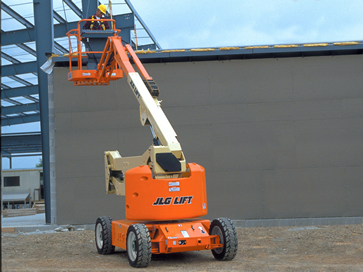

E450AJ Articulated Lift for Hire

• Platform Height: 13.72 m
• Machine Width: 1.75 m
• Platform Capacity – Unrestricted: 226.80 kg

Key Features

• Versatility: Three platform heights and jib and non-jib options; three chassis widths to fit any workspace; electric or multi-fuel
• Accessibility: up and over access, optional jib
• Maneuverability: move over uneven surfaces with the Automatic Traction Control option
• Productivity: work longer with longer duty cycles

Power Source:

• Batteries 8 x 6V, 370 A-h
• Electrical System 48 Volts DC

Performance Data:

• Drive Speed – Platform Lowered 5.20 km/h
• Gradeability – 2WD 30 %
• Platform Capacity 230 kg
• Platform Capacity – Unrestricted 226.80 kg
• Swing 360 Degrees
• Swing Type Non-Continuous
• Turning Radius – Outside 3.15m

Dimensional Data:

• Ground Clearance 0.2 m
• Machine Height 2.01 m
• Machine Length 6.45 m
• Machine Width 1.75 m
• Platform Dimension A 0.76 m
• Platform Dimension B 1.52 m
• Platform Height 13.72 m
• Tailswing 0 m /
• Tire Size (ANSI EXPORT & CSA) 240/55-17.5 Pneumatic
• Tyre size 240/55-17.5 Foam Filled
• Wheelbase 2.01 m

Reach Specifications:

• Horizontal Jib Rotation 0 Degrees
• Horizontal Outreach 7.24 m
• Platform Height 13.72 m
• Up and Over Height 7.70 m
• Working Height 15.72 m
• Working Outreach 7.89 m

General Specifications:

• Capacity – Hydraulic Reservoir 20 L
• Machine Weight (ANSI Export & CSA) 6532 kg
• Machine Weight (CE & GOST) 6670 kg
